# 导入集群
## 1：获取k8s集群的config配置
> 不同的云平台操作方式不一样，这里提供比较常用的AWS和阿里云的操作方式。其他云平台请查阅对应平台官方文档，或咨询客服。
### AWS EKS 获取k8s集群配置
#### 准备：
* **安装AWS命令行工具**
官网说明文档 ：
windows 环境请按照上面官网说明文档下载最新版本安装
Mac和Linux安装命令：（要求Python 2.5.6以上版本）
```shell
pip install awscli
```
* **安装kubectl**
请选择和集群版本一致的客户端版本，否则可能会出现不兼容的问题
Kubectl 安装方式请参考下面k8s 官网说明：
* **获取集群配置信息**
执行下面命令，会在当前文件夹下的config目录中生成k8s集群配置信息config文件。
```shell
# eks 1.23及以下版本
bash -c "$(curl -s https://raw.githubusercontent.com/spotmaxtech/maxcloud_public/master/setup/aws/aws_token.sh)"
```
```shell
# eks 1.24及以上版本
bash -c "$(curl -s https://raw.githubusercontent.com/spotmaxtech/maxcloud_public/master/setup/aws/aws_token_1.24.sh)"
```
> 执行过程中需要输入账号秘钥信息，和集群所在区域、集群名等必要信息。
#### 阿里云ACK获取k8s集群配置

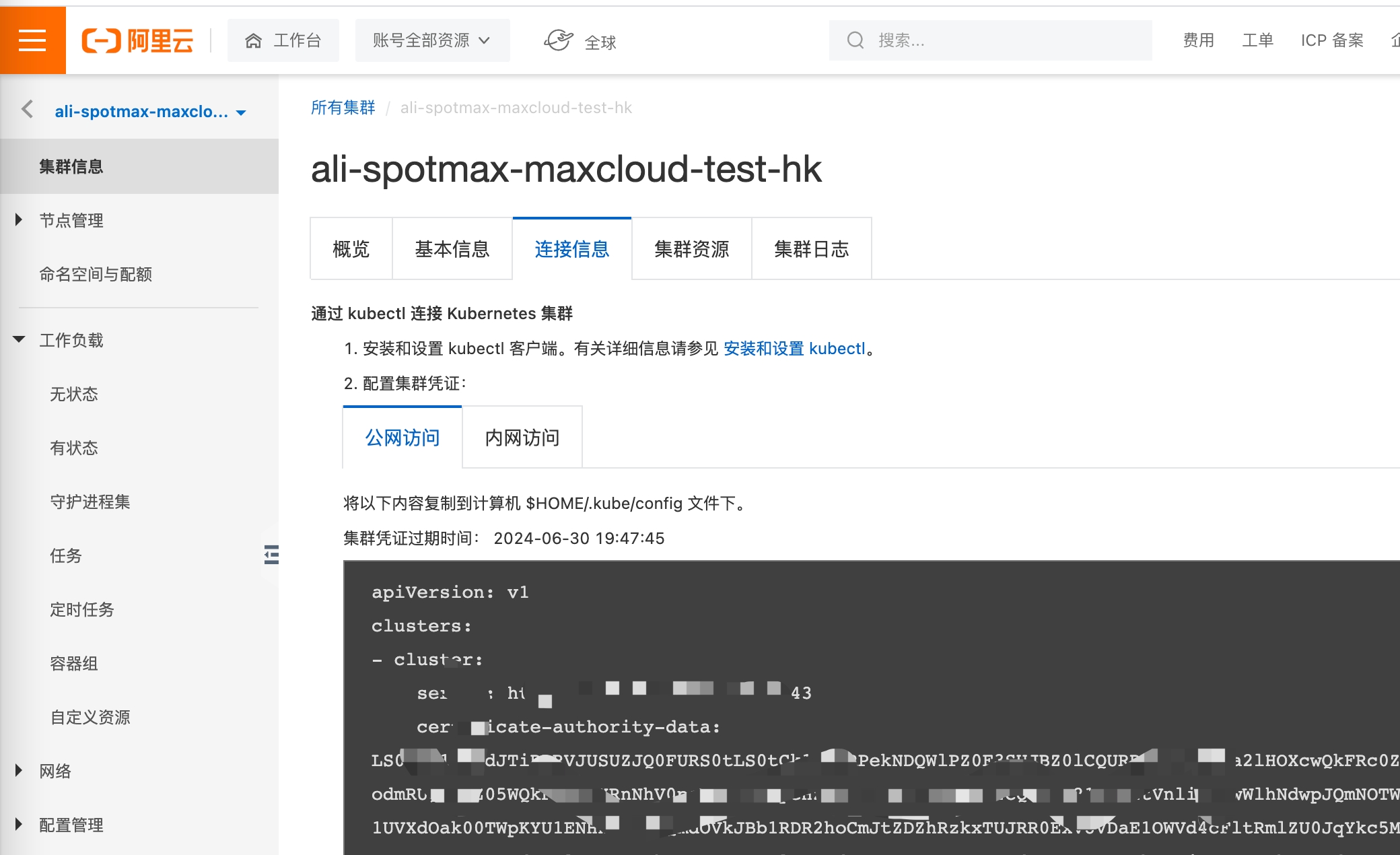

阿里云获取集群配置信息比较简单，直接从集群管理信息页面复制即可。
## 2：导入MaxCloud
获取到k8s集群配置信息就可以导入MaxClould了。
登录[MaxCloud平台](https://maxcloud.spotmaxtech.com/)，进入集群管理->集群列表->导入集群
集群名称：填入有意义的信息，方便后续使用过程中区分
云商：选择您集群服务提供商
地区：集群所在地
集群配置信息：填入第一步操作中获取到的集群配置信息
复制上一步操作中获取到的kubeconfig信息到输入框中，或者使用导致配置方式导入配置文件, 用户可以根据需要选择云商及地区，事实上用户只要导入正确的KubeConfig文件，即可直接在MaxCloud平台开始K8s集群的使用
## 3：注意事项
* 请注意检查kubeconfig中的账户验证方式，不能是类似AWS默认命令方式类似
```yaml
users:
- name: arn:aws:eks:ap-east-1:818539432014:cluster/aws-hk-1
user:
exec:
apiVersion: client.authentication.k8s.io/v1alpha1
args:
- --region
- ap-east-1
- eks
- get-token
- --cluster-name
- aws-eks-xxxx-1
command: aws
```
* 如果您的集群配置了外网访问白名单限制，需要先把下面MaxCloud外网IP添加到安全组中
```shell
47.57.136.45
47.57.185.152
# 热备环境IP
15.152.237.207
```
* 不建议使用从rancher等管理软件中导出的kubeconfig文件，可能会有部分权限不足导致问题
---
