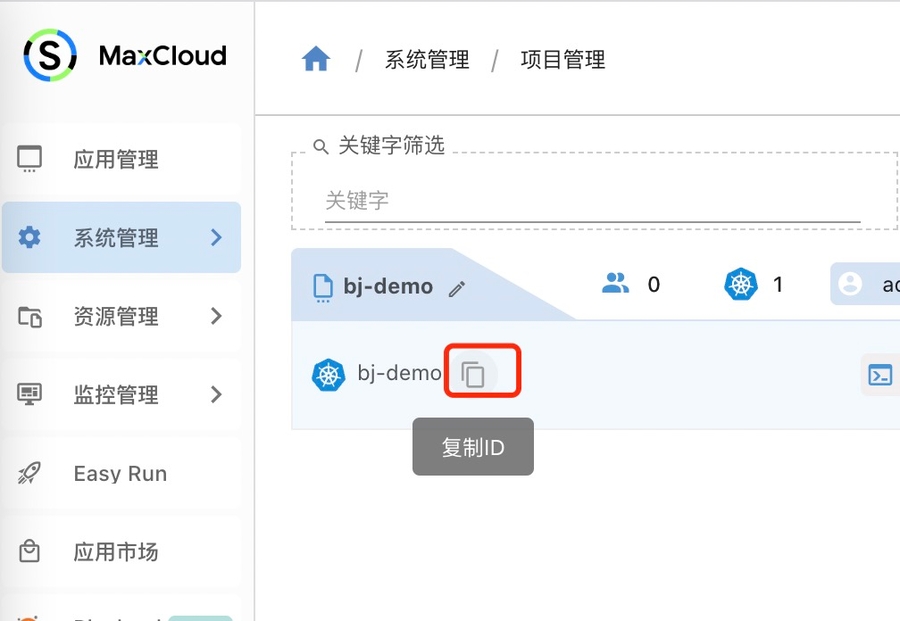

# MaxLang操作资源示例 ## MaxLang 操作MaxCloud相关功能示例 ### 登录MaxCloud loginMaxCloud("用户名","密码") 参数1：用户名（登录MaxCloud账户） 参数2：密码（登录MaxCloud密码） ``` loginMaxcloud("jianwen.gao@mobvista.com", <>) ``` ### 使用Credential 方式登录MaxCloud setCredential("maxcloud", "", <\>) loginMaxcloud("maxcloud") ``` setCredential("maxcloudab", "jianwen.gao@mobvista.com", <>) loginMaxcloud("maxcloudab") ``` ### 获取Team列表 获取登录账号可以使用的所有Team列表 ``` listTeam() ``` ### 获取Team下的所有项目列表 listProject(teamId) 参数1：团队ID ``` listProject(1) ``` ### 获取项目下的所有集群列表 listCluster(teamId, projectId) 参数1：团队ID 参数2：项目ID ``` listCluster(1, 79) ``` ### 初始化集群参数变量 使用一个map变量保存teamId、projectId,clusterId、namespace 等参数，使用一个方便识别的名称，后续集群相关方法调用第一个参数都传入这个变量，用于指定集群环境。 teamId,projectId,clusterId 等参数可以直接从MaxCloud项目管理页面复制，如下图所示 ![image-20221010151738693](https://resource.spotmaxtech.com/common/1665386004933.jpg) 从网页中复制的一下内容，只有 `teamId`、`projectId`、 `clusterId`、 `namespace` 几个参数是必填的，Name相关参数只是为了方便您识别 ``` Crazywolf_test_ack_maxcloud_bj_demo = { "teamId": 1, "teamName": "MaxCloud", "projectId": 62, "projectName": "Crazywolf-test", "clusterId": 22, "clusterName": "ack-maxcloud-bj-demo", "namespace": "crazywolf" } ``` ### 设置当前环境的kubeconfig 参数1：集群环境变量 此函数执行后会把当前集群环境变量指定集群的kubeconfig放在当前环境的\~/.kube/config 文件中，后续可以使用 `exec(xxx)`执行shell 命令，如果使用`exec(kubectl get pod -n namespaceName)` 就可以获取指定namespace下的pod列表 如果需要切换kubeconfig需要重新执行useCluster，该操作会用新集群kubeconfig覆盖之前的文件 ``` useCluster(bj_demo_crazywolf) ``` #### 展示设置集群kubeconfig后使用shell命令操作集群 ``` exec("kubectl get deployment -n crazywolf") ``` ### 创建命名空间 参数1：集群环境变量 参数2：新命名空间名称 ``` createNamespace(bj_demo_crazywolf, "gjw-0910") ``` ### 获取资源Yaml 参数1：集群环境变量 参数2：资源类型 参数3：资源名称 ``` getYaml(bj_demo_crazywolf, "deployment","ngxin-dep-0") ``` ### Describe 资源 参数1：集群环境变量 参数2： 资源类型 参数3：资源名称 ``` describeResource(bj_demo_crazywolf, "deployment", "ngxin-dep-0") ``` ### Scale Deployment 参数1：集群环境变量 参数2：Deployment 名称 参数3： Replicas 数量 ``` scaleDeployment(bj_demo_crazywolf, "ngxin-dep-0", 1) ``` ### Scale Statefulset 参数1：集群环境变量 参数2：Statefulset 名称 参数3：Replicas 数量 ``` scaleStatefulset(bj_demo_crazywolf, "xxxx", 2) ``` ### 列举所有资源 参数1：集群环境变量 参数2：资源类型 listResource 指定资源类型后可以获取上面指定集群命名空间下的所有资源 listResource 可以只传入一个类型参数，也可以传入第二个参数作为零时命名空间（不会覆盖之前useCluster设置的命名空间） 目前支持的资源为： * deployment * job * cronjob * daemonset * statefulset * service * ingress * persistentvolumeclaim * configmap * secret * gateway * namespace * pod * horizontalpodautoscaler * serviceaccount * replicaset * poddisruptionbudget * node * storageclass ``` listResource(bj_demo_crazywolf, "deployment") ``` ### 获取随机字符串 randStr参数为需要获取随机字符串长度，如果不传参数默认为6 ``` randStr(6) ``` ### 把Maxlang对象转换成Json #### 测试把Map转换为json ``` /* 声明一个MAP 对象 */ mapObj = { "name" : "CrazyWolf", "age" : 18, "address" : "beiijng" } /* 把map 对象转换成json */ toJson(mapObj) ``` #### 测试把数组对象转换成json ``` /* 声明一个Array 对象 */ arrayObj = [1, true, "stringObj"] /* 把map 对象转换成json */ toJson(arrayObj) ``` #### 测试把函数返回对象转为json ``` toJson(listTeam()) ``` ### 等待N秒 sleep(second) 参数1：休眠秒数 ``` sleep(5) ``` ### 使用模版Apply Yaml #### 声明字符串模版 模版语法同Golang 语法 ``` configStr = `apiVersion: v1 kind: ConfigMap metadata: name: myconfigmap-{{.nameSuffix}} namespace: crazywolf labels: app: myapplication data: data: {{.randData}}` ``` #### 声明一个Map数据用于替换上面模版的占位 Map 数据key、value 都必须是字符串，暂不支持其他类型 ``` randstr = randStr(6) data = {"nameSuffix":randstr, "randData":randstr} ``` #### 使用fillTemp 方法用map 替换模版中的占位符，获取最终可执行的yaml字符串 ``` yaml = fillTemp(configStr, data) yaml ``` #### 调用applyYaml 方法在集群中部署yaml ``` applyYaml(bj_demo_crazywolf, yaml) ``` ## HPA ### 锁定HPA 参数1：当前集群环境 参数2：HPA 名称 参数3：minReplicas 设置minReplicas值，默认MaxReplicas不变，如果当前MaxReplicas小于要设置的minReplicas则修改 MaxReplicas为minReplicas一样 例如： ```yaml demo-hap minReplicas: 2 maxReplicas: 5 ``` 调用 localHpa(env, "demo-hpa", 3)，锁定为3则执行后结果为 ```yaml demo-hap minReplicas: 3 maxReplicas: 5 ``` 如果再次调用调用 localHpa(env, "demo-hpa", 10)，锁定为10则执行后结果为 ```yaml demo-hap minReplicas: 10 maxReplicas: 10 ``` ``` lockHpa(bj_demo_crazywolf, "gjw-test", 1) ``` ### 设置HPA 的Replicas 参数1：HPA名称 参数2：minReplicas 参数3：maxReplicas ``` setHpaReplicas(bj_demo_crazywolf, "gjw-test", 1, 2) ``` #### 获取HPA的minReplicas 参数1：集群环境 参数2：HPA名称 ``` getHpaMin(bj_demo_crazywolf, "gjw-test") ``` #### 获取HPA的maxReplicas 参数1：集群环境 参数2：HPA名称 ``` getHpaMax(bj_demo_crazywolf, "gjw-test") ``` #### 获取HPA当前Replicas 参数1：集群环境 参数2：HPA名称 ``` getHpaCurrent(bj_demo_crazywolf, "gjw-test") ``` ### Helm 安装 #### 添加Repo 参数1：集群环境变量 参数2：repo name 参数3：repo URL ``` addOrUpdateRepo(bj_demo_crazywolf, "bitnami", "https://charts.bitnami.com/bitnami") ``` #### 设置sets ``` sets = { "wordpressBlogName" : "CrazyWolf3453456" } ``` #### 安装Chart 参数1：集群环境变量 参数2：releaseName 参数3：chart name 参数4：chart版本 参数5：sets参数 （可选） ``` installOrUpgradeChart(bj_demo_crazywolf, "my-wordpress", "bitnami/wordpress", "15.2.5", sets) ``` ### 查循已安装的Helm列表 参…-stage-old.detailroi.mintegral.com") ### AWS ASG Size查询和更改 ASG 相关方法都支持通过公共方法执行云商，或者用云商的方法名，以获取asg为例 * 参数中指定云商（aws、aliyun、huawei） ``` getASG("credential", "aws","us-west-2", "kmax-demo-asg-small") ``` * 直接用云商的方法 ``` getAwsASG("credential", "us-west-2", "kmax-demo-asg-small") ``` listASGs、getASG、updateASG、lockASG 都支持上述使用方式 #### usage: **列出region的ASG， 如果asgName是空， 列出所有的ASG** ``` listASGs("credential", "aws", region, asgName) ``` **更新ASG的最小容量、最大容量、所需容量** ``` updateASG("credential","aws", region, asgName, miniSize, maxSize, desiredSize) ``` **获取ASG的最大、最小、所需容量** ``` getASG("credential","aws", region, asgName) ``` **锁定ASG到lockSize** ``` lockASG("credential","aws", region, asgName, lockSize) ``` e.g. ``` listASGs("credential", "aws", "us-west-2", "kmax-demo-asg-small") getASG("credential", "aws","us-west-2", "kmax-demo-asg-small") updateASG("credential", "aws", "us-west-2", "kmax-demo-asg-small", 2, 2, 2) lockASG("credential", "aws", "us-west-2", "kmax-demo-asg-small", 2) listAwsASGs("credential", "us-west-2", "kmax-demo-asg-small") getAwsASG("credential", "us-west-2", "kmax-demo-asg-small") updateAwsASG("credential", "us-west-2", "kmax-demo-asg-small", 2, 2, 2) lockAwsASG("credential", "us-west-2", "kmax-demo-asg-small", 2) ``` #### 查询ASG(s) 参数1：云商credential ，请先试用setCredential(name, key, value 设置) 参数2：region 参数3：asgName （可选） * 获取Aws asg列表 ``` listAwsASGs("credential", "us-west-2") listAwsASGs("credential", "us-west-2", "asgName") ``` * 获取阿里云 asg 列表 ``` listAliASGs("credential", "us-west-2") listAliASGs("credential", "us-west-2", "asgName") ``` * 获取huawei asg 列表 ``` listHwASGs("credential", "us-west-2") listHwASGs("credential", "us-west-2", "asgName") ``` **使用参数指定云商** ``` listHwASGs("credential", "aws", "us-west-2") listHwASGs("credential", "aws", "us-west-2", "asgName") listAwsASGs("credential", "us-west-2") listAliASGs("credential", "us-west-2") listHwASGs("credential", "us-west-2") ``` #### 更改ASG的最小容量、最大容量、所需容量 参数1：云商credential ，请先试用setCredential(name, key, value 设置) 参数2：region 参数3：asgName 参数4：最小 参数5：最大 参数6：期望值 * 修改Aws asg ``` updateAwsASG("credential", "us-west-2", "asgName", 1, 100, 50) ``` * 修改阿里云 asg ``` updateAliASG("credential", "us-west-2", "asgName", 1, 100, 50) ``` * 修改 huawei asg ``` updateHwASG("credential", "us-west-2", "asgName" ,1, 100, 50) ``` **使用参数指定云商** ``` updateHwASG("credential", "aws", "us-west-2", "asgName" ,1, 100, 50) updateAwsASG("credential", "us-west-2", "kmax-demo-asg-small", 2, 2, 2) updateAliASG("credential", "us-west-2", "kmax-demo-asg-small", 2, 2, 2) updateHwASG("credential", "us-west-2", "kmax-demo-asg-small", 2, 2, 2) ``` #### 锁定ASG容量 参数1：云商credential ，请先试用setCredential(name, key, value 设置) 参数2：region 参数3：asgName 参数4：锁定值 如果参数4锁定值小于1，则最小值会被修改为当前的期望值 如果参数4大于最大值，则最大值会被修改为锁定值 如果期望值小于参数4锁定值，则期望值修改为所定值 * 锁定Aws asg ``` lockAwsASG("credential", "us-west-2", "asgName", 10) ``` * 锁定aliyun asg ``` lockAliASG("credential", "us-west-2", "asgName", 10) ``` * 锁定huawei asg ``` lockHwASG("credential", "us-west-2", "asgName", 10) lockAwsASG("credential", "us-west-2", "asgName", 10) lockAliASG("credential", "us-west-2", "asgName", 10) lockHwASG("credential", "us-west-2", "asgName", 10) ``` ### 获取asg 参数1：云商credential ，请先试用setCredential(name, key, value 设置) 参数2：region 参数3：asgName * 获取Aws asg列表 ``` getAwsASG("credential", "us-west-2", "asgName") ``` * 获取阿里云 asg 列表 ``` getAliASG("credential", "us-west-2", "asgName") ``` * 获取huawei asg 列表 ``` getHwASG("credential", "us-west-2", "asgName") getAwsASG("credential", "us-west-2", "asgName") getAliASG("credential", "us-west-2", "asgName") getHwASG("credential", "us-west-2", "asgName") ``` ## Bucket 管理 ### 列出Bucket ``` listBucket ``` 参数1：credential 参数2：云商provider 参数3：endpoint(aliyun的时候必传) * 列出Aws bucket ``` listBucket("credential", "aws") ``` * 列出Aliyun bucket ``` listBucket("credential", "aliyun", "https://oss-cn-beijing.aliyuncs.com") listBucket("credential", "aws") listBucket("credential", "aliyun", "https://oss-cn-beijing.aliyuncs.com") ``` ### 创建文件夹 ``` newBucketDir ``` 参数1：credential 参数2：云商provider （aws,aliyun） 参数3：bucketName 参数4：dirName 参数5：endpoint(aliyun的时候必传) * aws 指定bucket下创建文件 ``` newBucketDir("credential", "aws", "bucketName", "test_dirname") ``` * aliyun 指定bucket下创建文件 ``` newBucketDir("credential", "aliyun", "bucketName", "test_dirname", "https://oss-cn-beijing.aliyuncs.com") newBucketDir("credential", "aws", "bucketName", "test_dirname") newBucketDir("credential", "aliyun", "bucketName", "test_dirname", "https://oss-cn-beijing.aliyuncs.com") ``` ### 列出Bucket 中的文件 ``` listBucketFile ``` 参数1：credential 参数2：云商provider 参数3：bucketName 参数4：前缀 Prefix 参数5：endpoint(aliyun的时候必传) * 列出aws 指定bucket 下的文件 ``` listBucketFile("credential", "aws", "bucketName", "test_dirname/") ``` * 列出aliyun 指定bucket 下的文件 ``` listBucketFile("credential", "aliyun", "bucketName", "test_dirname/", "https://oss-cn-beijing.aliyuncs.com") listBucketFile("credential", "aws", "bucketName", "test_dirname/") listBucketFile("credential", "aliyun", "bucketName", "test_dirname/", "https://oss-cn-beijing.aliyuncs.com") ``` --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://doc.spotmaxtech.com/kai-fa-zhe-zhi-nan/maxlangoptionmaxcloud.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
